Logic Need recommend the "intelligent" file formats like Gerber X2 file format over the old formats (Gerber RS-274X artwork files / Excellon drilling files) to ensure superior manufacturability, quality, reliability and consistency.

1-	Download our pre-configured CAM Job file To download our pre-configured CAM Job file Click here File Version: R8   File Name:  LogicNeed_Eagle_GerberX2_Generater_Ver_R8.cam File Description: This Job file is suitable for Autodesk Eagle from version 8.6 and Above

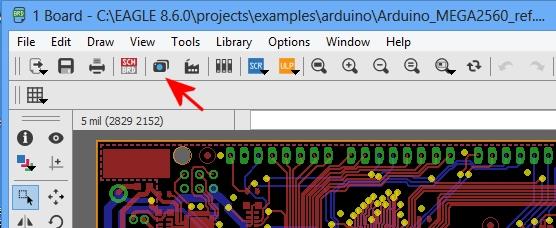

2-	Open your design in Eagle and click the CAM icon, this will bring up the CAM Processor.
3-	In the new window, open the CAM file by clicking "Load Job File icon" and select "Open CAM File"

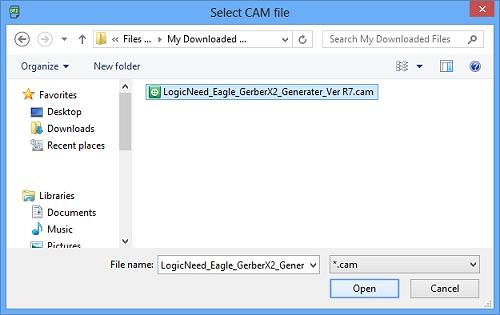

4-	When the Open CAM Job dialog opens locate the file that you downloaded (in step 1) and click the Open button. Please make sure you are using the Logic Need CAM file, (the default Eagle CAM Job files will not export the files correctly).

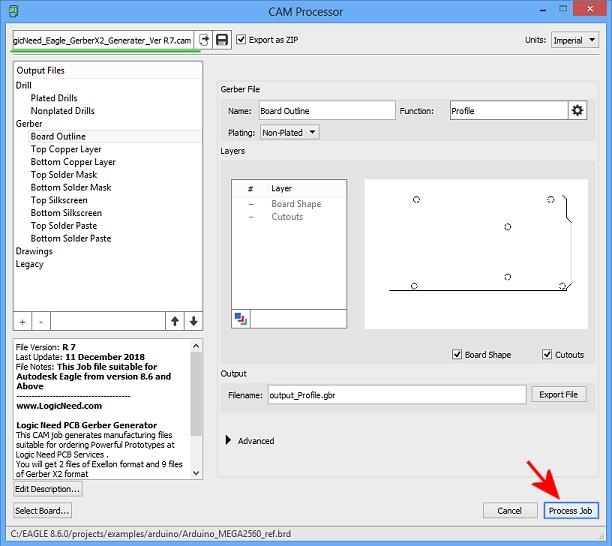

5-	The CAM file will export all the required layers, including the drill file in Excellon format and will name the generated files with our preferred names and extensions.  Please dont change any settings of CAM Processor dialog after loading our job file , Click "Process Job" button to begin the export process.

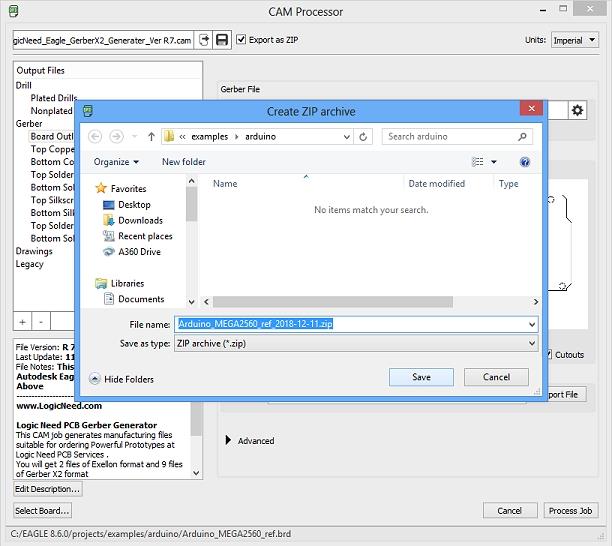

6-	The manufacturing files will be exported and compressed as single ZIP archive file, the  "Create ZIP archive" dialog box will appear to browse where to save it.

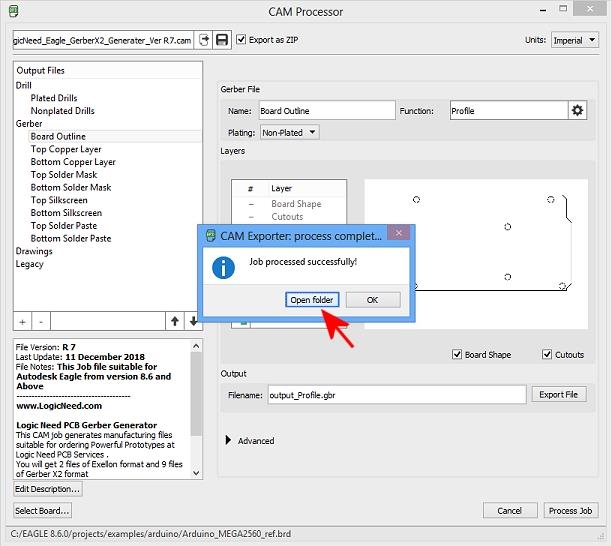

7-	When the  ZIP archive is saved, a success message displayed, Click "Open Folder'" to locate the generated ZIP file,
8-	Send this ZIP archive file to Logic Need PCB Service. The ZIP file will contain the following files: Now, you are done. (We recommend that you give the files inside the ZIP file a quick check using any Gerber viewer software or online Gerber Viewer before confirming the order)

Generate Gerber and Drill files by using our helpful pre-configured CAM Job file:
    - For Eagle version 8.5 or earlier
    - For Eagle version 8.6 or above

▪	For more information about Gerber X2 file format  [click here]
